Model 6450: Universal Ultra Heavy-Duty 150PSI 5-Gal Onboard Air System with Tire Inflation Kit

Skip to product information

KL 6450

Regular price $492.95
Sale price $492.95 Regular price $579.95

💳 Get it today, pay over time with Shop Pay Installments.

In stock

PROP 65 WARNING:
This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

MODEL 6450: ULTRA HEAVY-DUTY - HIGH CAPACITY ONBOARD AIR SYSTEM

THE ULTIMATE POWERHOUSE

Step up to elite onboard air performance with the premium Model 6450 system. Driven by our flagship waterproof high-output 100% duty cycle compressor and anchored by a massive 5-gallon air tank, this ultra heavy-duty configuration is meticulously engineered for maximum air volume and non-stop recovery performance. It represents the ultimate power hub for demanding automotive, commercial, and extreme off-road applications where a lack of lung power is never an option.

VERSATILITY WITHOUT LIMITS

The high-capacity 5-gallon tank provides a massive, continuous air reserve capable of blasting multiple large train horns simultaneously, operating high-draw air tools, actuating differential lockers, or managing complete air suspension systems. It offers more than enough volume to easily inflate heavy-duty truck and off-road tires up to 39”. To ensure absolute long-term reliability on the trail, the all-steel reservoir is treated with an internal anti-corrosion coating that guards against moisture and rust scaling.

READY FOR THE TRAIL

Prepared for immediate fieldwork, this powerhouse system includes the premium INF-1 tire inflation kit. Outfitted with a 24-foot heavy-duty extension hose, quick-connect couplers, and a professional-grade inflator handle featuring a luminescent glow-in-the-dark pressure gauge, a clip-lock air chuck, and an integrated pressure release valve, it makes quick, back-to-back trail tire management effortless.

Why Choose the 6450?

  • Submersible Waterproof Compressor: Fully sealed pump layout utilizes specialized internal seals, modified gaskets, and an included Snorkel Kit remote intake framework to pull clean, dry air from inside the vehicle cab during deep river crossings and severe weather. Delivers a dominant 2.1 CFM.
  • 100% Duty Cycle: Heavy-duty 200 PSI compressor is engineered for continuous, non-stop operation under maximum load without needing cooling breaks.
  • High-Capacity Storage: Massive 5-gallon steel air reservoir provides a huge volume baseline to support oversized tires, air lockers, suspension adjustments, and heavy-demand train horns.
  • Corrosion Resistant: Internal tank lining is treated with an intensive anti-corrosion coating to prevent internal rust scaling and moisture contamination.
  • Complete Inflation System: Comes completely loaded with the premium INF-1 tire inflation system and a canvas tool storage bag for ultimate utility on the trail.

THE VERDICT: The definitive flagship pneumatic framework for high-volume demands. The Model 6450 delivers the immense capacity, waterproof durability, and continuous-duty power required for serious overland builds, work trucks, and ultimate train horn setups.

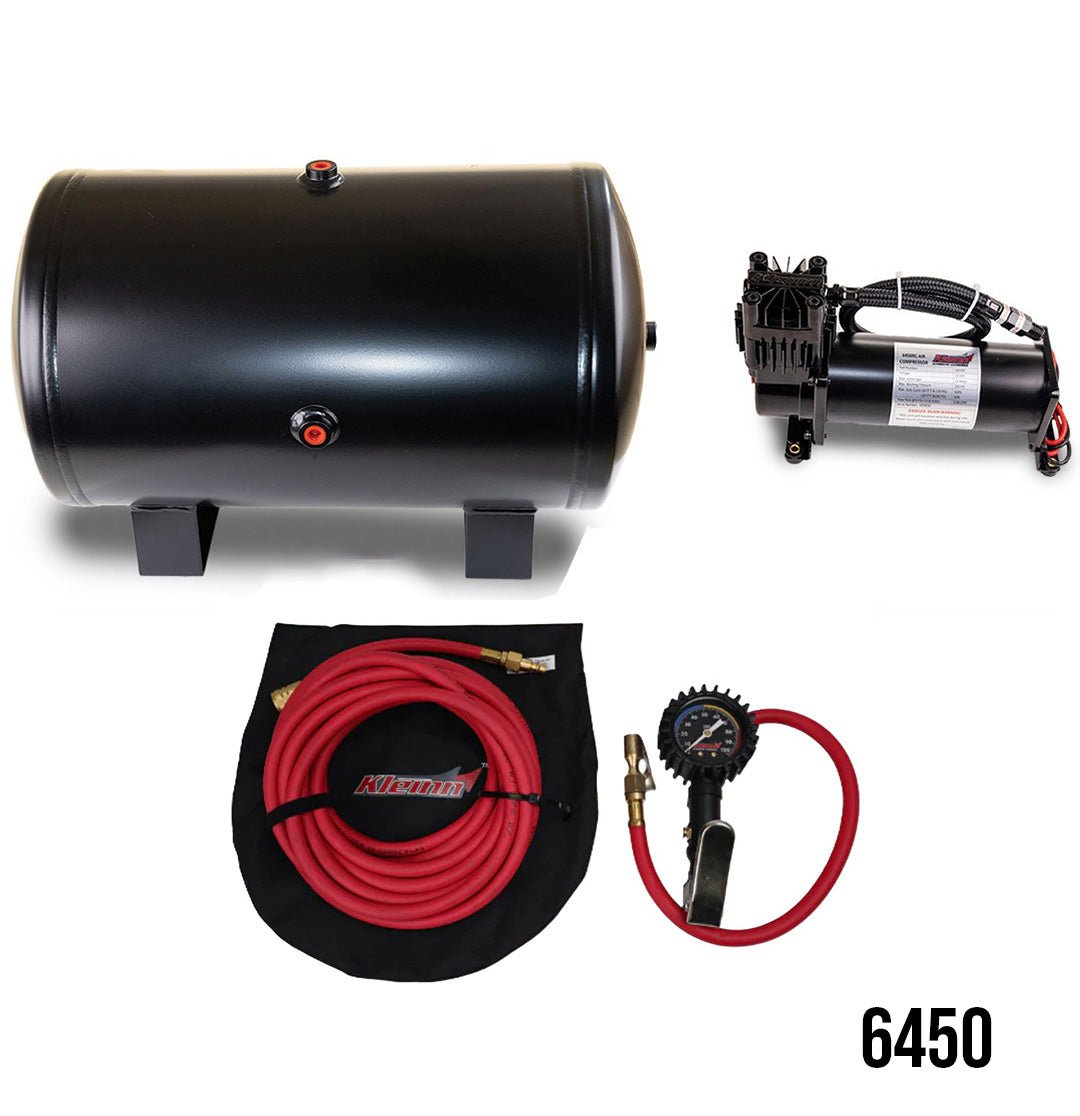

What's in the Box?

  • 6450RC: 200 PSI elite waterproof air compressor (100% continuous duty cycle)
  • Snorkel Kit: Remote air intake filter relocation system with 12' of 3/8" airline
  • 6450RT: 5-gallon steel air tank with premium internal anti-corrosion coating
  • INF-1 Kit: 24' heavy-duty extension hose, quick-connect fittings, luminescent gauge tire inflator, and canvas storage case
  • Fitting Pack: Pre-calibrated sealed pressure switch, safety blow-off valve, and brass drain port valve
  • Installation Kit: Full wiring harness, heavy-duty airline, thread sealant, and all required high-strength mounting hardware fasteners

AIR COMPRESSOR SPECIFICATIONS

Feature Details
Part Number Model 6450RC
Warranty 2-Year Extended
Max Pressure 200 PSI
Duty Cycle 100% @ 100 PSI
Flow Rate 2.1 CFM @ 0 PSI
Compressor Type Waterproof Sealed, Oil-less
Voltage 12V DC
Motor Type Permanent Magnetic
Max Tank Size 7 Gallon
Max Amp Draw 23 Amps
Dimensions 11.25” x 4” x 6.5”
Mounting Holes 8.9” x 3.31”
Mounting Note Any position except upside down
Shipping Weight 12 lbs
Pressure Switch P/N 2151

AIR TANK SPECIFICATIONS

5-Gallon Air Tank 6450RT
Capacity 5 Gallon
Construction Steel / Gloss Black
Internal Coating Cortec Anti-Corrosion
Mounting Legs 2 Legs / 4 Points
Ports 6×1/4" NPT & 1×1/2" NPT
Max Pressure 200 PSI
Dimensions 19” x 10” x 13”

AIR TANK FILL RATES

Tank Size Pressure Range Fill Rate
2.5 Gal 0-150 PSI 2:54 (+/-5s)
2.5 Gal 110-150 PSI 0:54 (+/-5s)
5.0 Gal 0-150 PSI 5:57 (+/-10s)
5.0 Gal 110-150 PSI 1:53 (+/-5s)
