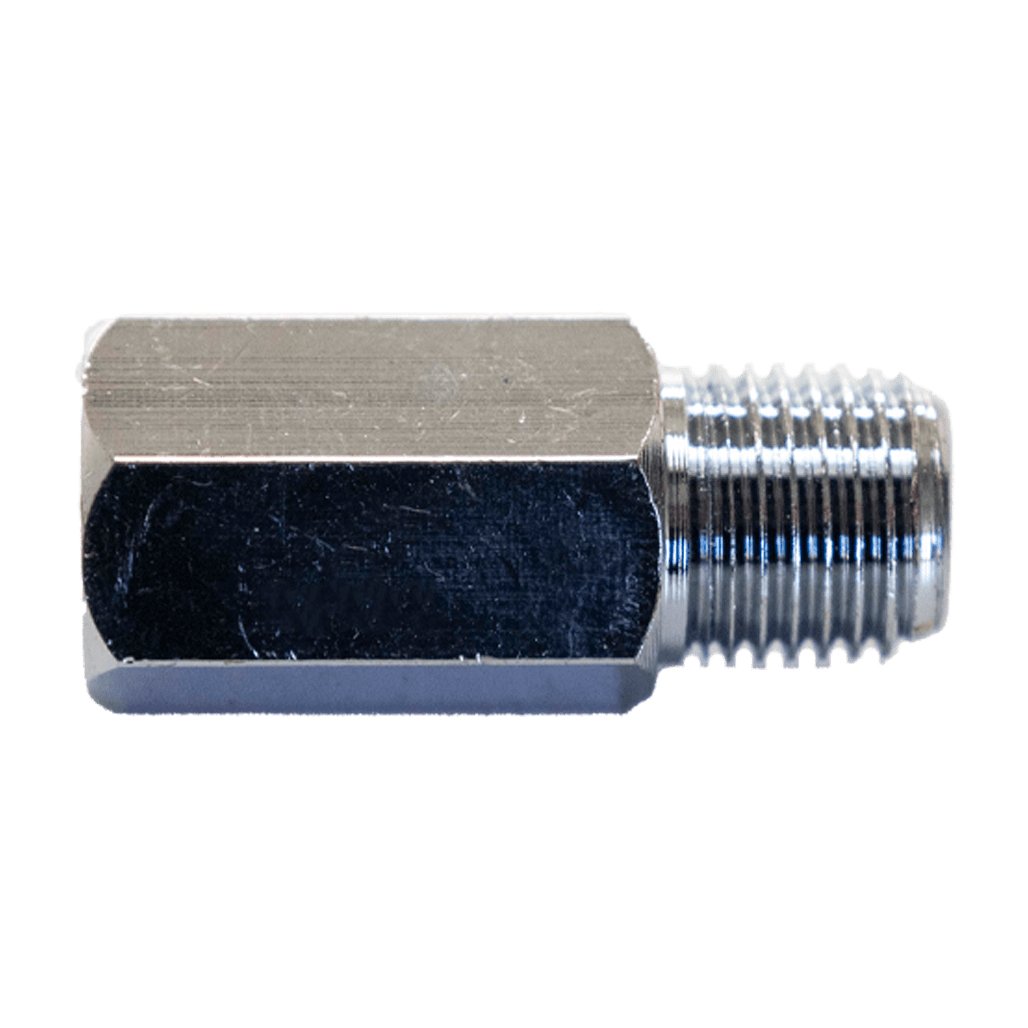

Model 52831: Inline Check Valve | 1/4" Female NPT Inlet - 1/4" Male NPT Outlet

  • Inline Check Valve 1/4" F NPT to 1/4" M NPT - Kleinn Automotive Accessories - KL 52831

KL 52831

$8.69
$8.69 $8.69

💳 Get it today, pay over time with Shop Pay Installments.

In stock
PROP 65 WARNING:
This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

MODEL 52831: INLINE CHECK VALVE – 1/4" NPT

PREMIUM ONE-WAY BACKFLOW PREVENTION POLICY

Protect and isolate your high-pressure storage reservoir from premature pressure loss with the premium Kleinn Model 52831 Inline Check Valve. Explicitly engineered to maintain strict one-way pneumatic flow, this rugged component is installed directly between your air compressor and the storage tank. By preventing high-pressure air from bleeding backwards into the compressor cylinder head when the system cycles off, it eliminates excessive strain on compressor restart cycles and seals your system tightly against slow overnight leaks.

HEAVY-DUTY PASS-THROUGH ARCHITECTURE

The Model 52831 features a space-saving inline design optimized for clean routing within dense vehicle frame rails or tight engine bays. Outfitted with a 1/4" Female NPT inlet port on one side and a 1/4" Male NPT outlet port on the other, it can thread directly into air tank bungs or link seamlessly into braided lead hoses. Built from durable materials engineered to withstand severe off-road vibration and continuous high heat cycles, it ensures an absolute airtight internal barrier while facilitating maximum unhindered airflow during active compressor pumping.

Why Choose the 52831 Inline Check Valve?

  • Strict One-Way Sealing: Seals instantly against backward pressure flow, protecting internal compressor components and retaining stored air volume.
  • Convenient Male/Female NPT Ports: Features a 1/4" FNPT inlet and a 1/4" MNPT outlet for direct, hassle-free adaptation into existing pneumatic manifolds or hoses.
  • Heavy-Duty Mechanical Internal: Precision-engineered spring and seat mechanism handles aggressive pulsing high-pressure flows without fluttering or sticking open.
  • Eliminates Restart Strain: Keeps head pressure off the compressor piston, ensuring smooth, low-amp startup cycles every time the pressure switch demands air.

THE VERDICT: The definitive one-way safety barrier for onboard air infrastructure. The Model 52831 blends uncompromised one-way mechanical sealing with a versatile inline configuration to ensure your pneumatic network holds maximum pressure exactly where it belongs.

⚠️ Critical Installation Requirements

The Model 52831 Inline Check Valve is a strictly directional pneumatic component. Incorrect orientation will entirely block air delivery from reaching your storage reservoir:

Proper Line Orientation Guideline:

  • 1/4" Female NPT Port (Inlet): Must always face toward the incoming air flow running from the air compressor discharge line.
  • 1/4" Male NPT Port (Outlet): Must always thread into or face toward the air storage tank port receiving the pressurized air.
  • Vibration Insulation: If mounting directly to a high-vibration compressor, it is highly recommended to install the valve on the downstream end of a flexible stainless steel braided leader hose to cushion the internal valve mechanism.

What's Included in the Box

  • Check Valve: One (1) Model 52831 Inline One-Way Check Valve (1/4" FNPT Inlet to 1/4" MNPT Outlet).

🔴 PRO TIP: Prevent hidden system leaks and system bleed-downs. When threading the 1/4" Male NPT end into your storage tank bung or adapter block, avoid over-torqueing to prevent fracturing the brass fitting walls. Always apply a few drops of liquid anaerobic thread sealant compound like our genuine Kleinn JUICE across the male thread leads to block out slow, micro-pneumatic pressure drops.

PRODUCT SPECIFICATIONS

Feature Details
Part Number 52831
Component Classification Pneumatic Inline Check Valve (One-Way Backflow Preventer)
Inlet Thread Interface 1/4" Female NPT (National Pipe Thread)
Outlet Thread Interface 1/4" Male NPT (National Pipe Thread)
Internal Valve Design Heavy-Duty Precision Spring-Loaded Valve Seat Configuration
Primary Functional Utility Isolates tank pressure from compressor head; stops line drain-back
Universal Application Integrates into standard 1/4" NPT Air Tanks
