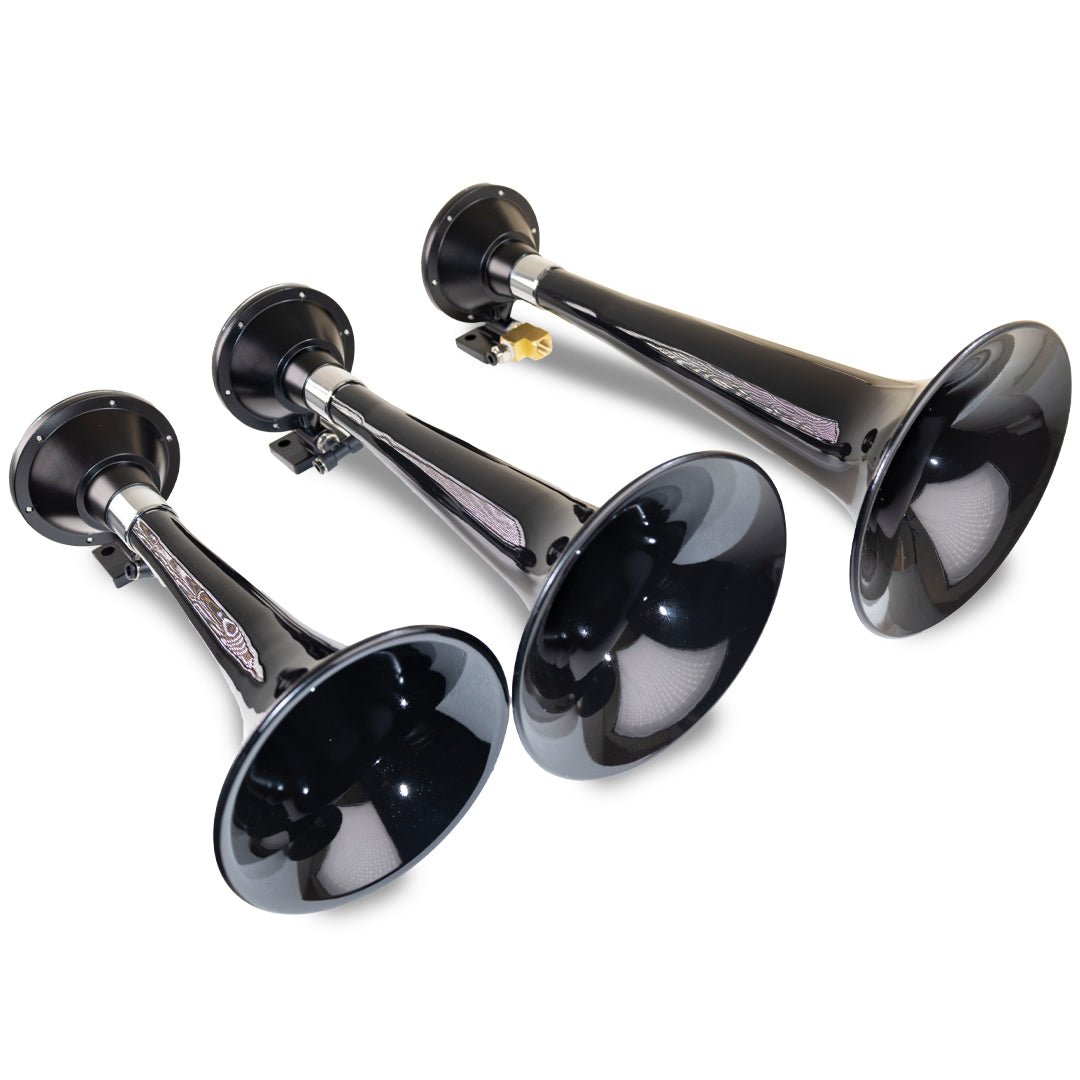

The Beast 230 Triple Train Horns

The Beast ™ 230 Triple Train Horns

For everyone who told us they wanted a louder, nastier train horn - here it is. The flat-rack design requires 40% less clearance than our 500 Series train horns making installation easier. The trumpets can also be removed from the flat rack mount, separated and mounted individually for installation in vehicles that could not otherwise fit a set of full-size train horns. Includes a Vortex 6 all-brass high flow solenoid air valve. Want it LOUDER? Add the Kleinn P/N 6885 Ultra Blastmaster air valve upgrade kit.  The kit includes two additional Vortex 6 air valves, bigger 1/2' airline and air fittings. NOTE: in 2017 Kleinn upgraded Model 230 horns to the all brass Vortex 6 air valves.  If your Model 230 horn has the chrome Model 307 air valve you will need the Model 6880 Blastmaster Valve Upgrade Kit.

• Three trumpets, 15", 13" and 11" with 3.5" Horn Base
• Deep and loud triple train horn sound
• Detachable black ABS trumpets with chrome collar
• Vortex 6 12v electronic all brass high flow train horn solenoid included
• 156.9* db output

​Installation Instructions

---

Specifications
Construction	Black High Impact ABS Triple Trumpets
Overall Length (in.)	18.5
Overall Width (in.)	16.25
Overall Height (in.)	7
Max Input (psi)	175
Output (db) @ 150 psi	156.9*
Solenoid	VX6003 Vortex 6 12v DC
*156.9 db output with P/N 6885 Ultra BlastMaster™ upgrade kit

*This set of air horns requires compressed air to operate.  Here is a list of compatible onboard air kits, we do have a universal complete onboard air kit that includes these Model 230 beast triple train horns, look up part number HK7.

6275 - 150 PSI 50% duty sealed air system

6350 - 150 PSI 100% duty sealed onboard air system

6450 - 150 (200)  PSI 100% duty sealed onboard air system
